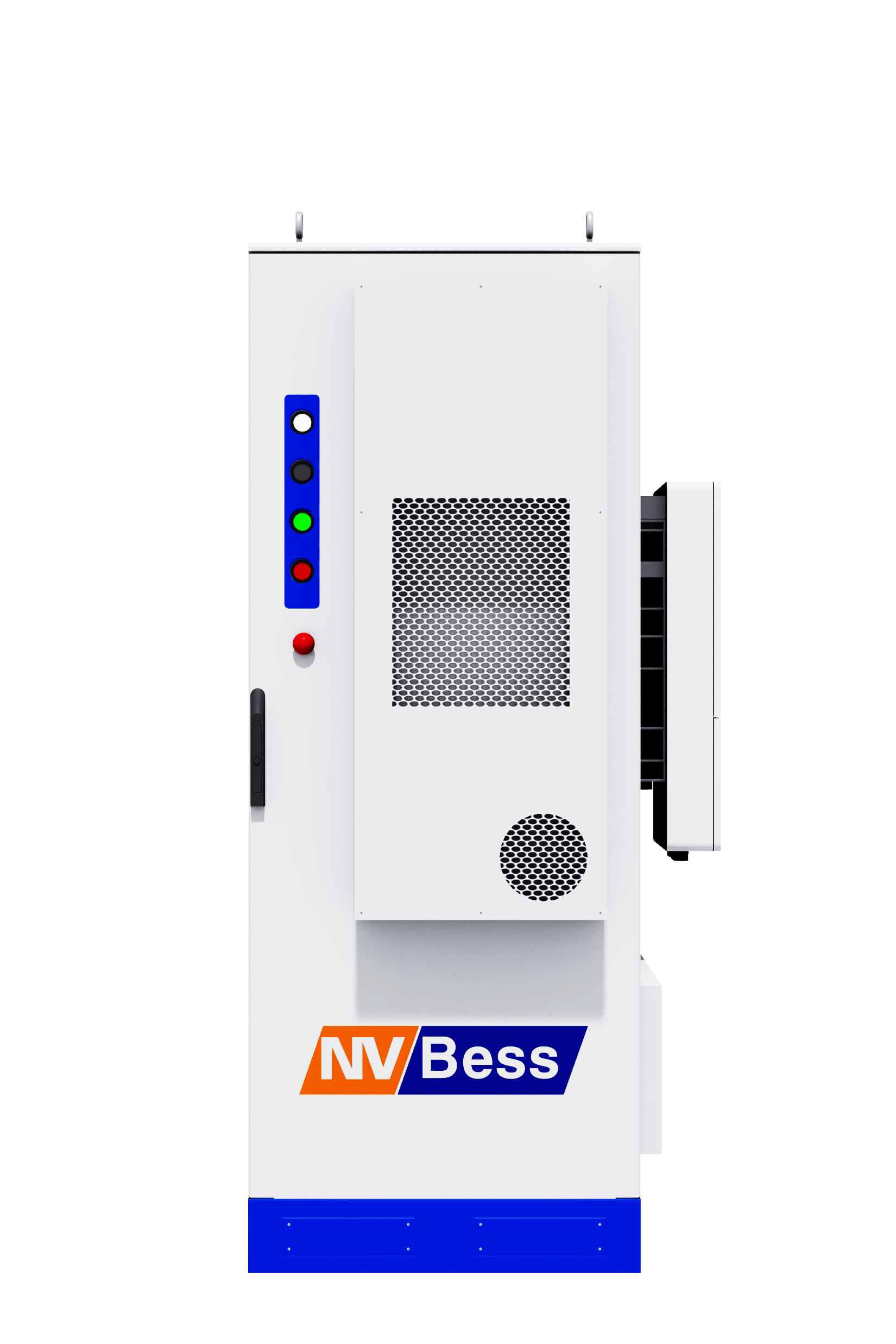

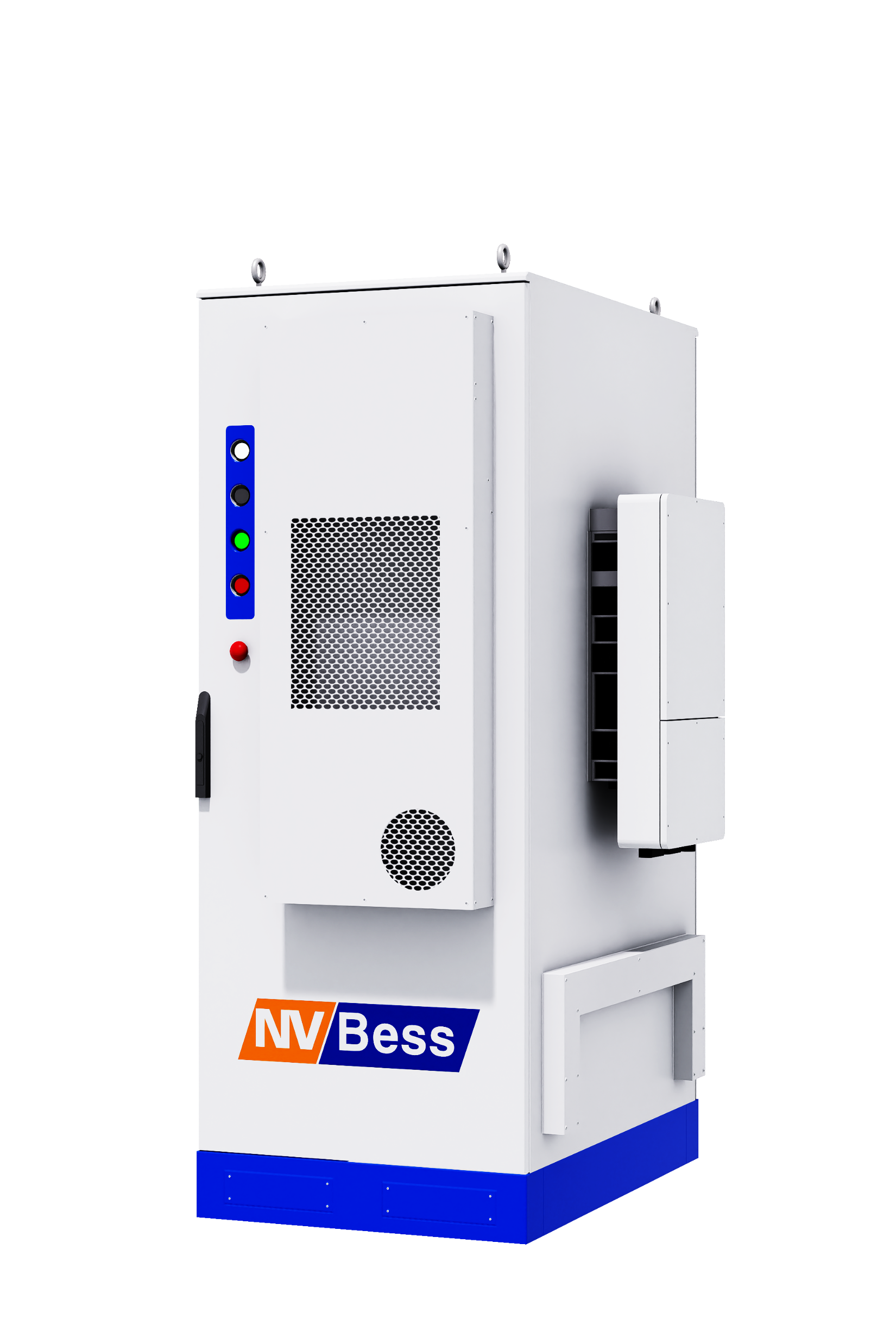

Hybrid Solar ESS Cabinet
Our Hybrid Solar ESS System is a versatile, all-in-one solution designed for seamless integration of photovoltaic (PV) power generation with advanced energy storage for commercial and industrial applications.
Leveraging years of expertise in ESS integration and digital monitoring technology, it enables efficient PV and ESS operation, supporting self-consumption, grid independence, and intelligent energy optimization while ensuring easy installation and scalable expansion.
Key Features
Integrated PV-ESS Design
High-level fusion of solar inverters and energy storage components for maximized renewable energy utilization, reducing reliance on the grid.
Multi-Mode Operation
Versatile modes including self-consumption, peak shaving, backup power, and off-grid functionality for remote or microgrid setups.
Compact and User-Friendly
Plug-and-play architecture with a small footprint, simplifying deployment and maintenance; supports flexible capacity expansion through parallel connections.
Advanced Safety and Monitoring
Equipped with multi-level protections and real-time digital monitoring for fault detection, ensuring long-term reliability and safety.
| Cell Type | LFP 280Ah 3.2V |
| Rated Energy | 107.5 kWh |
| Rated Voltage | 384 V |
| Input Max. Power | 60 kW | 80 kW | 100 kW |
| PV Voltage | 150 – 850 V |
| Rated Power | 30 kW | 40 kW | 50 kW |
| Nominal Voltage | 400 Vac / 3P + N + PE |
| Nominal Frequency | 50 / 60 Hz |
| Efficiency | ≥ 90% |
| Cycle Life | ≥ 8000 cycles |
| Ingress Rating | IP55 |
| Cooling | Air cooling |
| Dimensions (W × D × H) | Approx. 800 × 1200 × 2100 mm |
