Our All-in-One Liquid-Cooled ESS Cabinet is a next-generation, high-density energy storage solution engineered for demanding C&I application.

Integrated cutting-edge BMS, EMS, battery packs and PCS into a single, robust cabinet.

This advanced design employs cabinet-level liquid cooling and precise temperature balancing to maintain cell temperature differences within 3°C, enhancing battery consistency, extending lifespan by up to 20%.

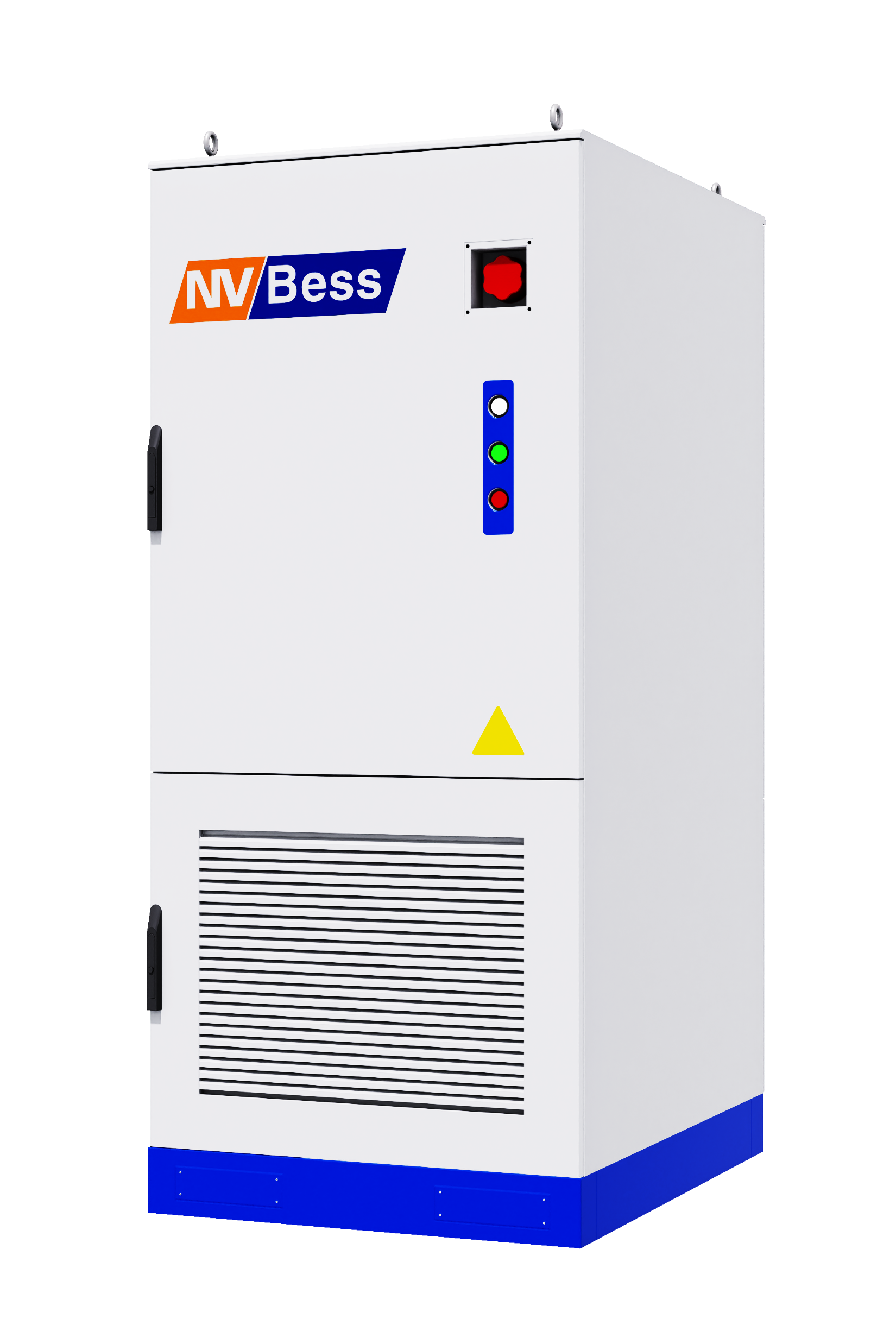

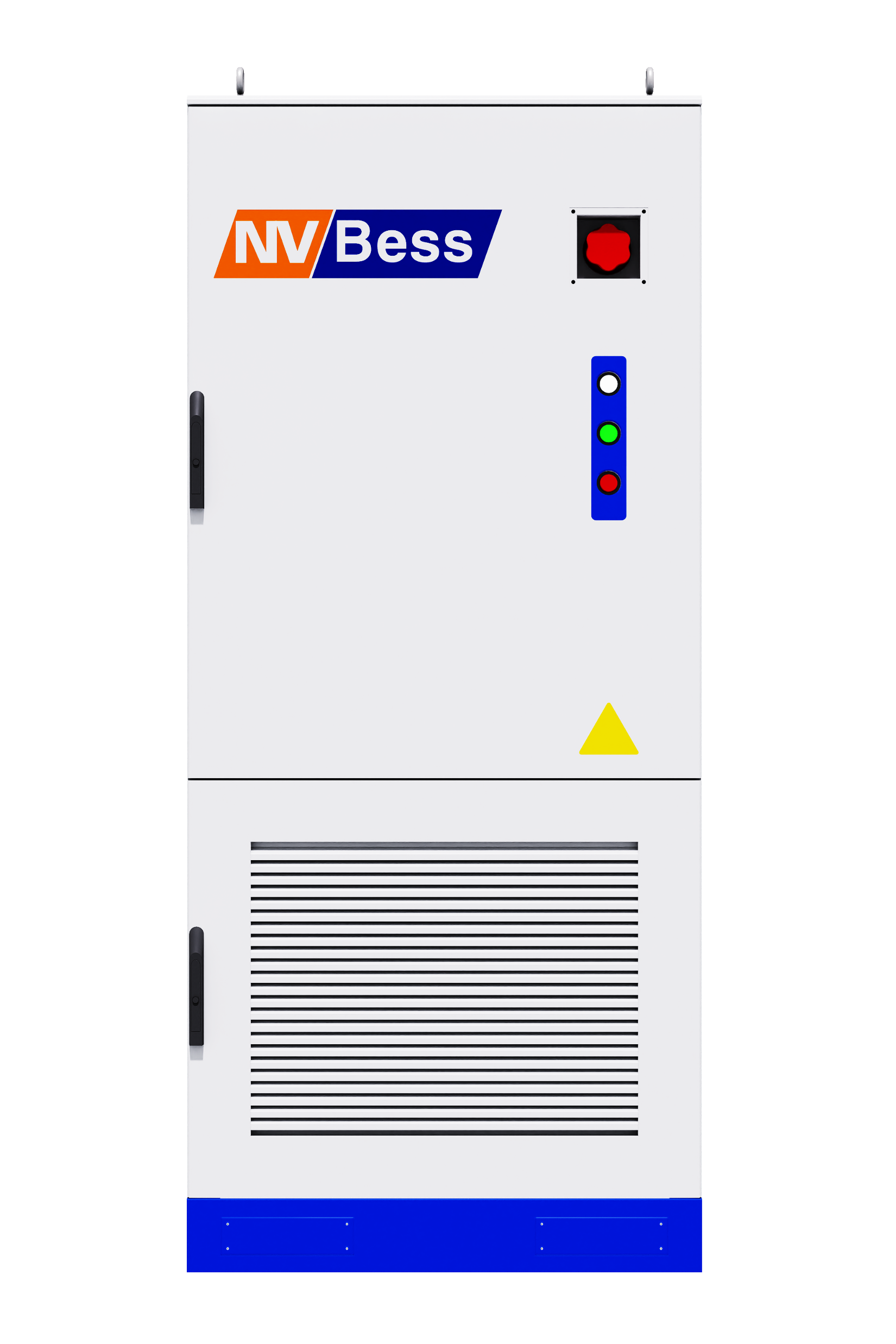

ESS 1 ESS 2

Key Features

Superior Cooling and Longevity

Achieves up to 90% efficiency with advanced liquid cooling technology, enhancing battery consistency and extending lifespan.

Safe and Reliable

Multi-level protection system including OVP, OCP, SCP, and thermal management to prevent faults and ensure stable performance in diverse environments.

Flexible Expansion

Plug-and-play design for easy, side-by-side installation, enhancing system scalability.

Intelligent Monitoring

Real-time EMS integration for remote diagnostics, predictive maintenance, and optimized energy distribution, simplifying O&M.

NVB-E233LS

Battery Specification
DC Side
Cell TypeLFP 280Ah 3.2V
Battery System1P × 52S × 5S
Rated Energy233 kWh
Rated Voltage832 V
AC Side
Rated Power100 kW
Max Power110 kW
Nominal Voltage400 Vac / 3P + N + PE
Nominal Frequency50 / 60 Hz
General
Efficiency≥ 90%
Cycle Life≥ 8000 cycles
Ingress RatingIP55
CoolingLiquid cooling
Dimensions (W × D × H) Approx. 1050 × 1350 × 2400 mm

NVB-E261LM

Battery Specification
DC Side
Cell TypeLFP 314Ah 3.2V
Battery System1P × 52S × 5S
Rated Energy261.2 kWh
Rated Voltage832 V
AC Side
Rated Power125 kW
Max Power137 kW
Nominal Voltage400 Vac / 3P + N + PE
Nominal Frequency50 / 60 Hz
General
Efficiency≥ 90%
Cycle Life≥ 8000 cycles
Ingress RatingIP55
CoolingLiquid cooling
Dimensions (W × D × H) Approx. 1050 × 1350 × 2400 mm
